Rewriting Spring Boot integration tests for 10x speedup

Problem description

At CML Team we are building our own (yet internal) CRM system. Technology-wise, it's a traditional web application with Java + Spring Boot + MySQL on the backend and React + Next.js on the frontend.

We have pretty good code coverage for the backend (reaching 80%) with tests, but the integration tests are (as expected) rather slow. It takes 20+ minutes to run on CI server. It's even slower running locally.

Needless to say, this slowness renders tests much less useful and helpful for the developers, since they practically can't run the tests locally often enough.

Source of slowness

At CML Team we value integration/functional tests. So we tend to write tests with less mocks, tests that span all layers of the (Java) application (controllers, services, repositories) -- down to (and including) the DB. The tests run on a real database (MySQL), not on often recommended H2.

Overall, the idea is, the closer your tests follow real (human) use-cases and real application setup, the higher are the chances to catch real bugs.

Of course, we write unit-tests when applicable. But otherwise, we prefer end-to-end tests to tests for a specific controller, service or component.

It's clear that such tests are inherently slow, but they should not be that slow! It was time to take a deeper look to understand what's going on.

Let's take a look at typical test we had there:

@ExtendWith(SpringExtension.class)
@AutoConfigureMockMvc
@SpringBootTest
@DBRider
@DBUnit(
        leakHunter = true,
        mergeDataSets = true,
        caseSensitiveTableNames = true,
        allowEmptyFields = true)
class PersonHistoryServiceITest {
    @Test
    @WithUserDetails(value = "user1@mail.com", setupBefore = TestExecutionEvent.TEST_EXECUTION)
    @CleanDataBaseBeforeAndAfter("db_rider_data/controller/person/init_data.json")
    @ExpectedDataSet(
            value = "db_rider_data/history/person/add/data_after_save_person.json",
            ignoreCols = {"id", "person_id", "modified_at", "element_id"})
    void writeCreatingPersonToHistory() throws Exception {
        mockMvc
                .perform(
                        MockMvcRequestBuilders.post("/attendee/create")
                                .contentType(MediaType.APPLICATION_JSON)
                                .content(
                                        asJsonString(
                                                PersonCreateRequestDto.builder()
                                                        .fullName(fullName)
                                                        .country("US")
                                                        .build())))
                .andExpect(status().is2xxSuccessful());
    }
}

The test uses the annotations from the Database Rider project.

As you can see, this test has the following logic:

1. Firstly, it wipes the DB and fills it with initial data in @CleanDataBaseBeforeAndAfter(".../init_data.json")
2. Then, it runs the body of the test method, that executes a REST call to the API being tested
3. Finally, it tests the correctness of the final state of the DB via @ExpectedDataSet(...)

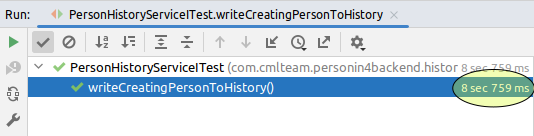

It appears that this test takes whopping 8+ seconds to execute:

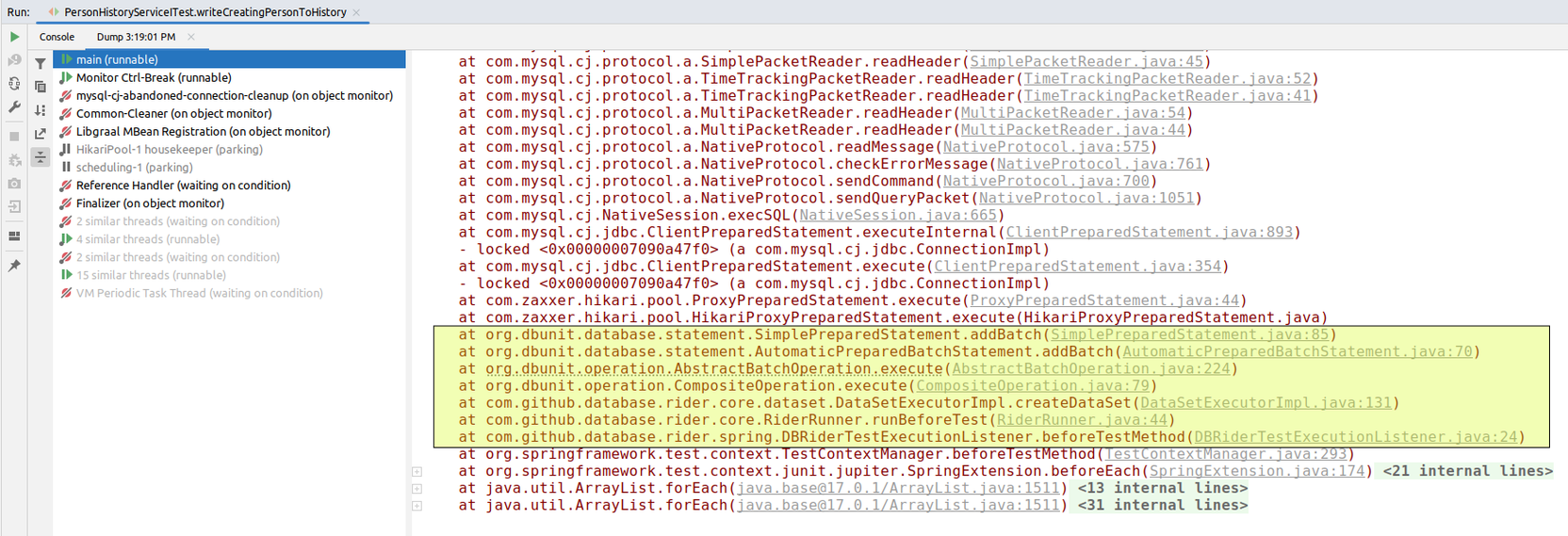

And if we take some thread dumps during the execution, we can see, that major part of this time is spent in the Database Rider plugin applying the initial state to the DB (init_data.json):

Here is an excerpt from init_data.json:

{
  "person": [
    {
      "id": 1,
      "country": "IE",
      "phone": "+111111111",
      "email": "john@test",
      "whatsapp": "1111111",
      "telegram": "@JohnS",
      "instagram": "@john_s",
      "facebook": "https://facebook.com/JohnS",
      "created_date": "1669125329768",
      "modified_date": "1669125329768",
      "first_name": "John",
      "last_name": "Smith",
      "outsourcing_history": "Found on clutch",
      "added_by": "IMPORTED_FROM_SPREADSHEET",
      "deleted": 0
    },
    // ...
  ],
  "avatar": [
    {
      "id": 1,
      "person_id": 1,
      "photo_url": "https://web-summit/photos/1",
      "main": 1,
      "deleted": 0
    },
    {
      "id": 2,
      "person_id": 3,
      "photo_url": "https://web-summit/photos/2",
      "main": 1,
      "deleted": 0
    },
    // ...
  ],
  "company": [
    {
      "id": 1,
      "company_funding": 100,
      "company_valuation": 25,
      "employees_amount": 60,
      "linkedin": "http://new_linked_in/good",
      "name": "Good company",
      "website": "www.good-company.com"
    },
    // ...
  ],
  "person_company": [
    {
      "company_id": 1,
      "person_id": 1
    },
    {
      "company_id": 1,
      "person_id": 2
    },
    // ...
  ],
  "conference": [
    {
      "id": 1,
      "start_date": "2022-05-06",
      "end_date": "2022-05-09",
      "link": "www.some.conference",
      "location": "San Francisco",
      "conference_name": "First conference",
      "type": "ONLINE"
    },
  ]
  // ...
}

Overall, the dataset there is not big:

$ cat 'src/test/resources/db_rider_data/controller/person/init_data.json' | jq '[.[] | length] | add'
35

So it should be only 35 SQL inserts.

I have some guesses why this can take so long:

• Obviously, to turn init_data.json into a set of SQL inserts the Database Rider must determine the correct insertion order, according to entity relations (like foreign keys). So I guess, as part of this routine it needs to first fetch the whole database metadata, and then apply some topological sorting to the source dataset.
• I'm not quite sure, how efficiently does the Database Rider do the inserts. Whether it is in an auto-commit mode? Whether it does each insert in a separate transaction?
• As init_data.json is shared among multiple tests, it, probably, contains more data than needed for this particular test.

The rewrite strategy

Given the concerns above, the rewrite strategy was obvious. Get rid of Database Rider annotations and code the DB initialization and DB check steps in plain code.

The same test looks now:

@ExtendWith(SpringExtension.class)
@AutoConfigureMockMvc
@SpringBootTest
class PersonHistoryServiceITest {
  @Test
  void writeCreatingPersonToHistory() throws Exception {
    // GIVEN
    DbTestHelper.Transaction transaction = dbTestHelper.startTransactionOnCleanDb();
    User user = testDataFactory.newAdmin();
    transaction.commit();

    String fullName = "John Doe";

    // WHEN
    MvcResult result =
        mockMvc
            .perform(
                post("/attendee/create")
                    .with(user(user))
                    .contentType(MediaType.APPLICATION_JSON)
                    .content(
                        asJsonString(
                            PersonCreateRequestDto.builder()
                                .fullName(fullName)
                                .country("US")
                                .build())))
            .andExpect(status().isOk())
            .andReturn();

    // THEN
    checkPersonHistoryCreated(ITestHelper.extractId(result), user, ADD, "Person", null, fullName);
  }
}

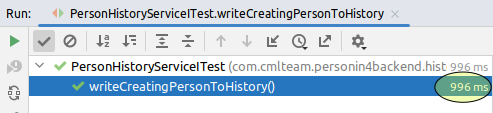

And runs in under one second:

So now instead of having implicit logic, hidden in annotations we have it in code, in the // GIVEN and // THEN sections. Similarly, the annotation @WithUserDetails is now an explicit line of code .with(user(user)).

The dbTestHelper encapsulates the functionality of cleaning the DB and starting/committing the transactions, common for many tests:

@Component
@RequiredArgsConstructor
public class DbTestHelper {
    private final EntityManager entityManager;
    private final PlatformTransactionManager platformTransactionManager;

    public interface Transaction {
        void commit();
    }

    Transaction startTransaction() {
        TransactionStatus transactionStatus =
                platformTransactionManager.getTransaction(TransactionDefinition.withDefaults());
        return () -> platformTransactionManager.commit(transactionStatus);
    }

    public Transaction startTransactionOnCleanDb() {
        Transaction transaction = startTransaction();
        cleanupDb();
        return transaction;
    }

    void cleanupDb() {
        try (Session session = entityManager.unwrap(Session.class)) {
            session.doWork(
                    connection -> {
                        Statement statement = connection.createStatement();
                        for (String table : tables) {
                            statement.addBatch("delete from personin4_integration." + table);
                        }

                        statement.executeBatch();
                    });
        }
    }

    private static final String[] tables =
            new String[]{
                    "person_industry",
                    "person_company_position",
                    "person_company"
                    // ... all other tables
            };
}

The main purpose of testDataFactory is to generate the testing data records in the DB. So by default it should generate the same entity data for any test, but should also provide a common way of customizing each entity instance before creation (using EntityCustomizer):

@Component
@RequiredArgsConstructor
public class TestDataFactory {
    private final EntityManager entityManager;
    private static final EntityCustomizer nop = o -> {};

    public interface EntityCustomizer<Entity> {
        void customize(Entity entity);
    }

    private <Entity> Entity customizeAndPersist(
            EntityCustomizer<Entity> entityCustomizer, Entity entity) {
        entityCustomizer.customize(entity);
        entityManager.persist(entity);
        return entity;
    }

    public User newAdmin() {
        return newUser(user -> user.setRole(ROLE_ADMIN));
    }

    public User newUser() {
        return newUser(user -> user.setRole(ROLE_USER));
    }

    public User newUser(EntityCustomizer<User> userCustomizer) {
        return customizeAndPersist(
                userCustomizer,
                new User(
                        null,
                        true,
                        "example2@mail.com",
                        "username_2",
                        null,
                        true,
                        true,
                        true,
                        true,
                        "qwerty",
                        "John",
                        "Smith",
                        ROLE_USER,
                        null,
                        false,
                        newAccount(),
                        null,
                        null,
                        null,
                        null,
                        null,
                        null,
                        List.of(),
                        false));
    }

    public Person newPerson() {
        return newPerson(nop);
    }

    public Person newPerson(EntityCustomizer<Person> personCustomizer) {
        return customizeAndPersist(
                personCustomizer,
                Person.builder()
                        .firstName("John")
                        .lastName("Doe")
                        .email("email@example.com")
                        .phone("+123456789")
                        .outsourcingHistory("Found on clutch")
                        .personIndustries(Set.of())
                        .personCompanies(Set.of())
                        .personConferences(Set.of())
                        .cardPeople(List.of())
                        .campaigns(List.of())
                        .audios(new ArrayList<>())
                        .avatars(new HashSet<>())
                        .countryCode("US")
                        .country(new Country("US", "USA"))
                        .comments(List.of())
                        .photos(List.of())
                        .addedBy(AddedBy.IMPORTED_FROM_SPREADSHEET)
                        .createdDate(System.currentTimeMillis())
                        .modifiedDate(System.currentTimeMillis())
                        .build());
    }
    // ... other methods
}

Using this design you can pre-populate the testing data set in any way you like in the most concise way:

    // GIVEN
    DbTestHelper.Transaction transaction = dbTestHelper.startTransactionOnCleanDb();
    User user = testDataFactory.newAdmin();
    Person person = testDataFactory.newPerson();
    Company company = testDataFactory.newCompany();
    Position position = testDataFactory.newPosition();
    Position position2 = testDataFactory.newPosition(position1 -> position1.setTitle("CEO"));
    PersonCompany personCompany = testDataFactory.newPersonCompany(person, company);
    testDataFactory.newPersonCompanyPosition(personCompany, position);
    testDataFactory.newPersonCompanyPosition(personCompany, position2);
    transaction.commit();

TestDataFactory also uses a small trick of not using all the specific repositories for each entity type (like UserRepository, PersonRepository, etc.), but persisting through a lower level entityManager.

Why the new approach is better?

Firstly, Database Rider provokes init_data.json fixture reuse. This makes it less efficient due to excessive data not needed for a particular test. Besides, tests now tend to rely on the same (or intersecting) data, making it harder to change this data for a particular test.

Secondly, tests are now self-contained, not scattered over multiple files, like with DB Rider. This makes the test logic more comprehensible.

Thirdly, it's easier to debug and profile this way. Also, you only create the minimum test data you need for a test.

Lastly, you have more opportunities to refactor, less copy-paste.

To illustrate the last point, let's take a look at the set of (repetitive) tests we had before the refactoring:

@Test
  @WithUserDetails(value = "user1@mail.com", setupBefore = TestExecutionEvent.TEST_EXECUTION)
  @CleanDataBaseBeforeAndAfter("db_rider_data/controller/person/init_data.json")
  @ExpectedDataSet(
      value = "db_rider_data/history/person/edit/data_after_editing_first_name.json",
      ignoreCols = {"id", "person_id", "modified_at"})
  void writeEditingFirstNameToHistory() throws Exception {
    PersonUpdateRequestDto updateRequestDto =
        PersonUpdateRequestDto.builder()
            .personId(1L)
            .phone("+111111111")
            .email("john@test")
            .whatsapp("222222")
            .telegram("@JohnS")
            .instagram("@john_s")
            .facebook("https://facebook.com/JohnS")
            .firstName("Peter")
            .build();

    mockMvc
        .perform(
            put(domainConfig.getAppBaseUrl() + "/attendee/update")
                .contentType(MediaType.APPLICATION_JSON)
                .content(asJsonString(updateRequestDto)))
        .andExpect(status().is2xxSuccessful());
  }

  @Test
  @WithUserDetails(value = "user1@mail.com", setupBefore = TestExecutionEvent.TEST_EXECUTION)
  @CleanDataBaseBeforeAndAfter("db_rider_data/controller/person/init_data.json")
  @ExpectedDataSet(
      value = "db_rider_data/history/person/edit/data_after_editing_last_name.json",
      ignoreCols = {"id", "person_id", "modified_at"})
  void writeEditingLastNameToHistory() throws Exception {
    PersonUpdateRequestDto updateRequestDto =
        PersonUpdateRequestDto.builder()
            .personId(1L)
            .phone("+111111111")
            .email("john@test")
            .whatsapp("222222")
            .telegram("@JohnS")
            .instagram("@john_s")
            .facebook("https://facebook.com/JohnS")
            .lastName("Doe")
            .build();

    mockMvc
        .perform(
            put(domainConfig.getAppBaseUrl() + "/attendee/update")
                .contentType(MediaType.APPLICATION_JSON)
                .content(asJsonString(updateRequestDto)))
        .andExpect(status().is2xxSuccessful());
  }

  @Test
  @WithUserDetails(value = "user1@mail.com", setupBefore = TestExecutionEvent.TEST_EXECUTION)
  @CleanDataBaseBeforeAndAfter("db_rider_data/controller/person/init_data.json")
  @ExpectedDataSet(
      value = "db_rider_data/history/person/edit/data_after_editing_country.json",
      ignoreCols = {"id", "person_id", "modified_at"})
  void writeEditingCountryToHistory() throws Exception {
    PersonUpdateRequestDto updateRequestDto =
        PersonUpdateRequestDto.builder()
            .personId(1L)
            .phone("+111111111")
            .email("john@test")
            .whatsapp("222222")
            .telegram("@JohnS")
            .instagram("@john_s")
            .facebook("https://facebook.com/JohnS")
            .country("UA")
            .build();

    mockMvc
        .perform(
            put(domainConfig.getAppBaseUrl() + "/attendee/update")
                .contentType(MediaType.APPLICATION_JSON)
                .content(asJsonString(updateRequestDto)))
        .andExpect(status().is2xxSuccessful());
  }

  // ... even more tests like this

And here is the after:

 @Test
  void writeEditingFirstNameToHistory() throws Exception {
    writeEditingOfSingleFieldToHistory(
        new EditingOfSingleField(
            "Name",
            "NewName",
            Person::getFirstName,
            PersonUpdateRequestDto.PersonUpdateRequestDtoBuilder::firstName));
  }

  @Test
  void writeEditingLastNameToHistory() throws Exception {
    writeEditingOfSingleFieldToHistory(
        new EditingOfSingleField(
            "Surname",
            "NewName",
            Person::getLastName,
            PersonUpdateRequestDto.PersonUpdateRequestDtoBuilder::lastName));
  }

  @Test
  void writeEditingCountryToHistory() throws Exception {
    writeEditingOfSingleFieldToHistory(
        new EditingOfSingleField(
            "Country",
            "UA",
            Person::getCountryCode,
            PersonUpdateRequestDto.PersonUpdateRequestDtoBuilder::country));
  }

  // ... more like this

Impressive, huh?

Results

So far only 40 integration tests (out of around 490) are refactored this way.

The execution time of them dropped from 4m 30 sec to just 20 sec. This is stunning 13x speedup!

And believe it or not, we also were able to delete over 3K+ lines during this change (mostly due to dropping the fixture files):

In the near future we plan to rewrite the rest of the tests and use this approach for new tests.
